- Place of Origin: zhejiang
- Brand Name: Aliyiqi
- Model Number: ANJ-M
Usage

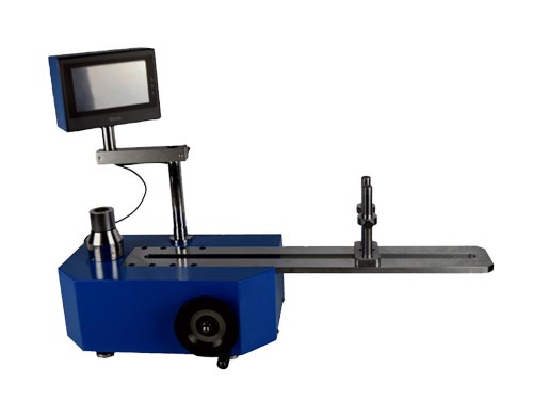

ANJ-M Digital Torque Wrench Tester is an intelligent multi-functional measuring instrument which is designed for testing torque wrench,torque screwdriver. It main used in testing and calibrating various kinds of Concentration type torque wrench, digital type torque wrench, preset type torque wrench, torsion screwdriver, screwdriver and all kinds of products involving tighten force instrument. Widely used in electrical manufacturing, mechanical manufacturing, automotive light industry and in scientific research and testing industry.
Function and characteristics
1. High precision, high resolution, quick sampling speed, full-screen display.
2. Meter display,curve display,curve zoom function and full touch screen display.
3. Adopting high precision torque sensor, with torque direction display.
4. Upper and lower limit value setting, red indicating lights and buzzer audible and visual alarm.
5. Three units can be switched each other (N·m、kgf·cm、Lb·in).
6. Real-time, peak, automatic peak three models of optional switch.
7. System time for setting.
8. Can large storage by USB flash disk.
- Place of Origin: zhejiang
- Brand Name: Aliyiqi
- Model Number: ANJ-M
pecifications
Model Index |
ANJ-M100 | ANJ-M200 | ANJ-M300 | ANJ-M500 | ANJ-M1000 | ANJ-M2000 | ANJ-M3000 | |
Measuring range/Division value | N·m | 100.0/0.01 | 200.00/0.01 | 300.00/0.01 | 500.00/0.01 | 1000.0/0.1 | 2000/0.1 | 3000/0.1 |
Kg·cm | 1021.0/0.1 | 2042.0/0.1 | 3063.1/0.1 | 5105.2/0.1 | 10210/1 | 20420/1 | 30631/1 | |
Ib·in | 886.2/0.1 | 1772.4/0.1 | 2658.6/0.1 | 4431.1/0.1 | 8862/1 | 17724/1 | 26586/1 | |
Dimension | 880mm×350mm×550mm | 1250mm×500mm×800mm | ||||||
Length range | 130mm~750mm | 250mm~980mm | 250mm~1800mm | |||||
Angle of rotation | 0-60° | 0~360° | ||||||
Height stroke | 130mm | 150mm | ||||||
Accuracy | ±1% | |||||||
Peak sampling frequency | 2000HZ | |||||||
Power | AC110-220V/50Hz-60Hz | |||||||
Net weight | 65Kg | 335kg |
