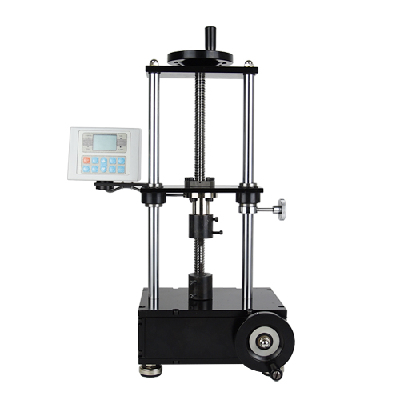

Torque screwdriver tester is a intelligent multi-function measuring instrument which is specialized in testing and checking all kinds of torque screwdriver.It is mainly used for testing and adjusting all kinds of torque screwdrivers,all products involving tests of tightening force ,parts torsion destructive force tests ,etc.It has characteristic of easy operation,high precision ,full function and so on .It is widely used in various electrical ,light industry ,machinery manufacturing,scientific research and other industries.
Characteristic
1 、 High precision,high resolution,quick sample rate,full screen display.
2 、 It adopt high precision torque sensor with torque direction display.
3、setting of upper and lower limit values.
4、Three unit can be switch into each other for optional(N·m、kgf·cm、 Ibf·in)
5、Three mode :Real-time、peak,auto-peak can be switching. 6、The USB interface can be connected to PC to make synchronous tests
to show force diagram,and also can record and store the result.
7、Peek holding function.auto-peak function,auto-peak value with time setting function.
8、Large storage capacity.It can save 99 sets test data. 9、Automatic shut down without operation,time can be setting freely.
- Place of Origin: zhejiang
- Brand Name: Aliyiqi
- Model Number: AYQJ
Type | AYQJ-2 | AYQJ-5 | AYQJ-10 | AYQJ-20 | |
Measuring range/di vision
value | N.m | 2.000/0.001 | 5.000/0.001 | 10.00/0.01 | 20.00/0.01 |
Kg.cm | 20.40/0.01 | 51.00/0.01 | 102.0/0.1 | 204.0/0.1 | |
Ib.in | 17.70/0.01 | 44.25/0.01 | 88.5/0.1 | 177.0/0.1 | |
Precision | ±1% | ||||
Peak sampling frequency | 1920HZ | ||||
Power | 7.2V 1.2V×6 Ni-MH Battery | ||||
Charging time | 4~6 hours | ||||
Battery continuous using time | About 10 hours | ||||
Battery life | ≧300 times | ||||
Size | 260mm*300mm*620mm |
