- Place of Origin: zhejiang
- Brand Name: Aliyiqi
- Model Number: AGN
Function

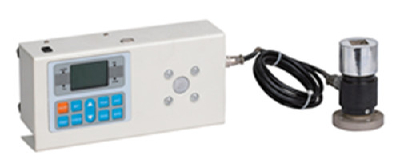

The high-speed impact torque meter is an intelligent multi-functional measuring instrument which is designed for
testing various kinds of torque. It main used in testing and calibration various kinds of electric pneumatic screwdriver set,
the torque of torque wrench, all kinds of products refer to testing of screw down force, parts torsion destructive testing etc.
With features of simple operation, high precision, easy to carry, complete functions etc. It’s widely used in various kinds of electric,
light industry, machinery manufacturing, research institutions, etc.
Type Index | With printer | AGN-1P | AGN-2P | AGN-3P | AGN-5P | AGN-10P | AGN-20P |
No printer | AGN-1 | AGN-2 | AGN-3 | AGN-5 | AGN-10 | AGN-20 | |
Measuring range / Division value | N·m | 1.0000/0.0001 | 2.0000/0.0001 | 3.0000/ 0.0001 | 5.0000/ 0.0001 | 10.000/ 0.001 | 20.000/ 0.001 |
Kg·cm | 10.210/ 0.001 | 20.421/ 0.001 | 30.631/ 0.001 | 51.052/ 0.001 | 102.10/ 0.01 | 204.21/ 0.01 | |
Lb·in | 8.862/ 0.001 | 17.724/ 0.001 | 26.586/ 0.001 | 44.311/ 0.001 | 88.62/ 0.01 | 177.24/ 0.01 | |
Precision | ±1%F.S | ||||||
Peak Value Sampling Frequency | 2000HZ | ||||||
Power | 8.4V 1.2VX7 Ni-MH Battery group | ||||||
Charging Time | 4～6 Hours | ||||||
Continuous using time of battery | About 10 Hours | ||||||
Battery life | ≥300 times | ||||||
Size | With printer：230mm×95mm×180mm No printer：230mm×70mm×125mm | ||||||
Net Weight | With printer：5KG No printer：3KG | ||||||
Power adapter | Input：AC 110-220V 50HZ Output：DC 10V 300mA | ||||||
Type
Index | With printer | AGN-1000P | AGN-2000P | AGN-3000P | AGN-5000P |
No printer | AGN-1000 | AGN-2000 | AGN-3000 | AGN-5000 | |
Measuring range / Division value | N·m | 1000.0/0.1 | 2000.0/0.1 | 3000.0/0.1 | 5000.0/0.1 |
Kg·cm | 10210/1 | 20420/1 | 30630/1 | 51051/1 | |
Lb·in | 88622/1 | 17724/1 | 26586/1 | 44311/1 | |
Precision | ±1%F.S | ||||
Peak Value Sampling Frequency | 2000HZ | ||||
Power | 8.4V 1.2VX7 Ni-MH Battery group | ||||
Charging Time | 4～6 Hours | ||||
Continuous using time of battery | About 10 Hours | ||||
Battery life | ≥300 times | ||||
Size | With printer：Host display part 230mm×95mm×180mm
No printer：Host display part 230mm×70mm×125mm
| ||||
Net Weight | With printer：8.5KG No printer：6.5KG | ||||
Power adapter | Input：AC 220V 50HZ Output：DC 10V 300mA | ||||
Main features
1:High precision, high resolution, quick sampling speed, full-screen display.
2: Adopting high precision torque sensor, with torque direction display
3:Upper and lower limit value setting, red and green indicating lights and buzzer audible and visual alarm.
4:Three units can be switched each other (N·m, kgf·cm, Lb·in).
5: Real-time, peak, automatic peak three models of optional switch.
6:Use USB interface and PC communications, synchronous test function can connect to the computer, computer
synchronous display test force graph and the detailed test process, can save, print, doing all sorts of analysis.
7: Peak holding, remove automatically function, remove time to set freely.
8: Large storage, can save 99 groups of test data.
9:Without automatic shutdown function, time can be set freely.
